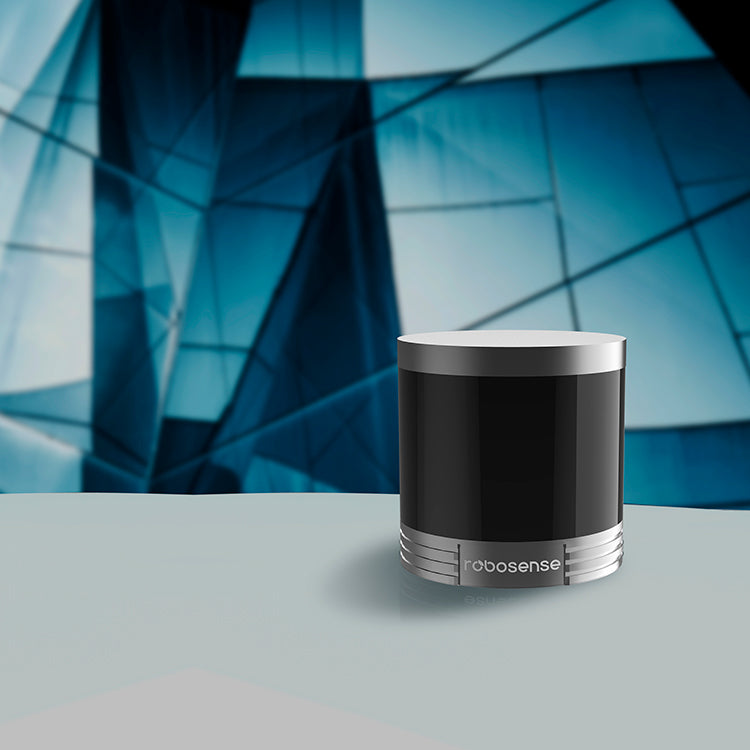

The RS-Helios is a new generation 32-beam LiDAR designed for robots, autonomous vehicles, V2X, and mapping applications.
The RS-Helios-5515 adopts a design that arranges lasers more densely in the center of its FOV and more sparsely on the ends, resulting in a higher-precision 3D point cloud of the environment in front of the vehicle. Combined with a customized 70°ultra-wide vertical FOV at a 55°-downward tilt below the horizon, it greatly reduces near-field blind spots, and allows for both long-range perception and blind-spot detection at the same time. This design greatly facilitates a simpler vehicle sensor setup.
With its innovative new architecture, the size of the RS-Helios series is reduced by 29% compared to the RS-LiDAR-32.
ADVANTAGES
Advantages
Customizable FOV
Near-field blind spot ≤ 0.1 m
Rain, fog, snow and dust denoising function
Shields against strong light and multi-radar interference
Supports web configuration and monitoring
-30°C temperature resistance
Multiple operation modes: high-performance, low-power, standby
In-car Ethernet output
「Vertical FoV of 70°
55°of FoV below horizon to elimilate blind zone」
Product Specifications
# of Lines | 32 | Laser Wavelength | 905nm |
---|---|---|---|
Laser Safety | Class 1 eye safe | Blind Spot | ≤0.4m |
Range | 200m(150m@10% NIST) | 200m(150m@10% NIST) | Up to ±3cm |
Horizontal FoV | 360° | Vertical FoV | 40° |
Horizontal Resolution | 0.1°/0.2°/0.4° | Vertical Resolution | Up to 0.33° |
Frame Rate | Frame Rate | Frame Rate | 300/600/1200rpm (5/10/20Hz) |
Points Per Second | ~600,000pts/s(Single Return) ~1,200,000pts/s(Dual Return) | UDP Packet include | Spatial Coordinates, Intensity, Timestamp, etc. |
Ethernet Connection | 100 Mbps | Output | UDP packets over Ethernet |
Operating Voltage | 9V - 32V | Operating Temperature | -30°C ~ +60°C |
Power Consumption | 13.5W | Storage Temperature | -40°C ~ +85°C |
Ingress Protection | IP67 | Time Synonization | $GPRMC with 1PPS |
Dimension | φ114mm * H108.73 mm | Weight (without cabling) | Weight (without cabling) |
